A1.  机壳型电源馆

馆长:林简松  Rex      rex.lin@meanwell.com

+886-2-299-6100 #618

       机壳型电源供应器具备孔洞式金属外壳,搭配端子座设计可让安装人员方便锁附。明纬深入市场了解应用需求,经过多年来的研发制造,机壳型电源涵盖低中高瓦数15W~10000W,完整产品线种类,如经济实惠款、传导散热式、恶劣环境专用、宽范围输出、并联符合市场广大需求,同时通过全球国际认证法规,产品已普遍应用于自动化控制、资料中心、监控安防、高精密产业、医疗等各种领域。

产品介绍

全系列产品介绍

       明纬机壳型电源具备广泛的功率范围15W~10000W满足各产业设备需求,并有多种特色功能包含内建PFC、可程式化输出电压电流宽范围调控、远端控制、可并联扩充瓦数符合客户应用。全系列标准品都有现货库存,全产品线通过完整国际安规标准及电磁相容认证,客户无须等待漫长的验证时间及支付昂贵的认证费用。

最新产品

NCP-3200系列

3200W新一代机架式(Rack-mounted)二合一电源供应器与充电器

MEAN WELL NCP-3200 Series, 3200W New Generation 2-in-1 Rack-mounted Switching Power Supply & Battery Charger

        NCP-3200系列提供低压符合SELV的直流24VDC/ 48VDC与高压直流 380VDC等三种输出电压机型,可因应各类电力电子或通讯产业以及能源系统用户的设备使用。其中24VDC/ 48VDC低压输出机型,考虑能源供应系统应用场合需求,将直流电源供应器与充电器特别以韧体的设定做二合一的应用设计,适用于各类轻/重工业机械设备...

ERG-5000系列

4通道5kW能量回收电网型逆变器

MEAN WELL RST-7K5/15K Series, 7.5KW / 15KW 3 Phase 4 Wire High Voltage DC Output Power Supply

        能源回收逆变器ERG-5000系列因应市场需要,提供2款输入电压机型:Blank type(10~60 VDC)与H type(60~420 VDC),客户可针对不同产业(如:电池检测设备、充电储能系统、充电桩…等)的生产老化节能应用需求做选择。此外,受惠于全数字化设计,输入电压可透过CANbus协议或CMU2A控制器进行定电流或定电压模式自主设定;输出电压与电流亦具备程序化控制功能。另外,ERG-5000系列同时内建多种监控讯号...

RST-7K5/15K系列

7.5KW/15KW三相四线直流高压输出电源

MEAN WELL RST-7K5/15K Series, 7.5KW / 15KW 3 Phase 4 Wire High Voltage DC Output Power Supply

        为提供更多样式的标准电源来满足客户,明纬再推出全新设计AC输入三相四线式RST-7K5(7500W)及RST-15K(15,000W)标准电源,以2U低高度设计及高效率达95%,最大并联输出功率可达30kW。在输出电压应用提供115V、230V及380V三种机型,可提供不同产业应用,如工业设备、充电储能系统、电解设备、集中供电…等。此外,输出电压电流皆具备可程序化控制功能...



影音专区

SHP-10K系列—
10kW三相三线高效率全数位电源供应器

      SHP-10K系列为明纬新开发出的三相三线10K瓦高输出直流电压电源供应器。依外型与散热方式主要区分内建强制风扇与水冷散热两种型态,对应的输出电压适用于工业自动化、通讯与充电设备等相关产业应用。




了解更多


HEP-2300系列—
2300W惡劣環境及5G通訊專用電源供應器

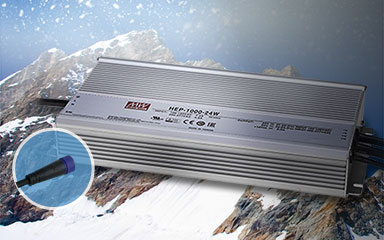

      HEP系列為針對在惡劣環境專用電源,具備防水防塵IP67功能,可抗震10G、無風扇設計,採用鋁擠外殼自然散熱方式,適合搭配各種戶外工業及通訊設備使用,也提供多種數位通訊功能,可整合到人機介面做系統控制。此外,本次新上市HEP-2300系列也提供高壓輸出機型,包含115V/230V及380V,可結合新的應用需求,如充電設備、電解設備、雷射切割及UV固化設備等。



了解更多


LRS系列介紹

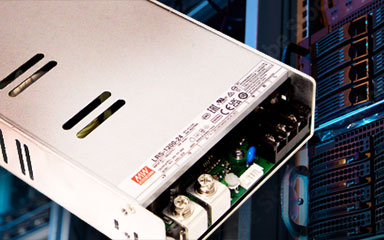

      LRS全系列提供 5V, 12V, 15V, 24V, 36V和48V输出,除了效率高达90%,金属网外壳的设计加强了散热能力,在没有风扇的情况下能于-25°C到+70°C的温度范围正常作业。提供超低空载功耗小于0.75W,使终端系统很容易满足国际能源要求。且具完整的保护功能和抗5G振动能力;符合UL62368-1国际安全法规,为各种工业应用提供了一个高性价比的解决方案。



了解更多

解决方案

The NCP-3200 series provides 3 output voltage models, including low-voltage SELV-compliant DC 24VDC/ 48VDC and high-voltage DC 380VDC, which can be used in a wide variety of power electronics, communication industries and energy systems' equipment.

In response to market needs, MEAN WELL's ERG-5000 series power inverter provides 2 types of input voltage models: Blank type (10~60 VDC) and H type (60~420 VDC). Customers can choose according to the production aging and energy recycling application requirements of different industries, such as battery testing equipment, charging energy storage systems, charging piles and others.

In recent years, due to the needs created by rapid urban development, the demand for safe, reliable, certified and smart security/ fire alarm power supplies has been increasing. Accordingly, MEAN WELL is announcing its new Enclosed Type Economical Security/ Fire Alarm Power Supply LAD-120/ 240/ 360/ 600 series.

The LRS-450 and 600 series adopt outward FAN cooling dissipation design. This design greatly improves the stability of the product. MEAN WELL has applied for a patent for the circuitry layout and appearance, and the product complies complete international safety regulations such as TUV/UL/CE/BIS and others. MEAN WELL persists in maintaining both quality and branding. In order to facilitate new design requirements of original customers, the LRS-450 and 600 series adopts the same size and pitch design as the SE-450 series and LRS-350 series, and high efficiency up to Max. 92%. In addition, the LRS-450/600 implement 3 seconds constant current limit for overload protection, and enhance greater flexibility when dealing with inductance and capacitance loads.

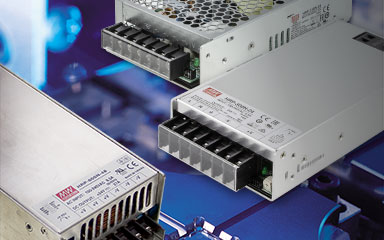

MEAN WELL HRP-N3 series, 350% high peak power design, 1U low profile design,   an average ±15% ultra-wide range output voltage adjustment capability, 5G vibration proof to withstand harsh environments, -40℃~70℃ ultra-wide operating temperature range makes HRP-N3 suitable for all kinds of environments

MEAN WELL Enclosed Type Power Supply, HEP Series and UHP series, Suitable for base station system, Fanless and fully-potted design for harsh environment, Withstand 10G vibration test, Built-in 2/3 stage charging curves and programmable curve, Output voltage and constant current level programmable, Built-in PMbus and CANBus protocal (optional), Built-in DC OK active signal and 12V auxiliary power output, Fanless design,convectin cooling, Slim and low profile design

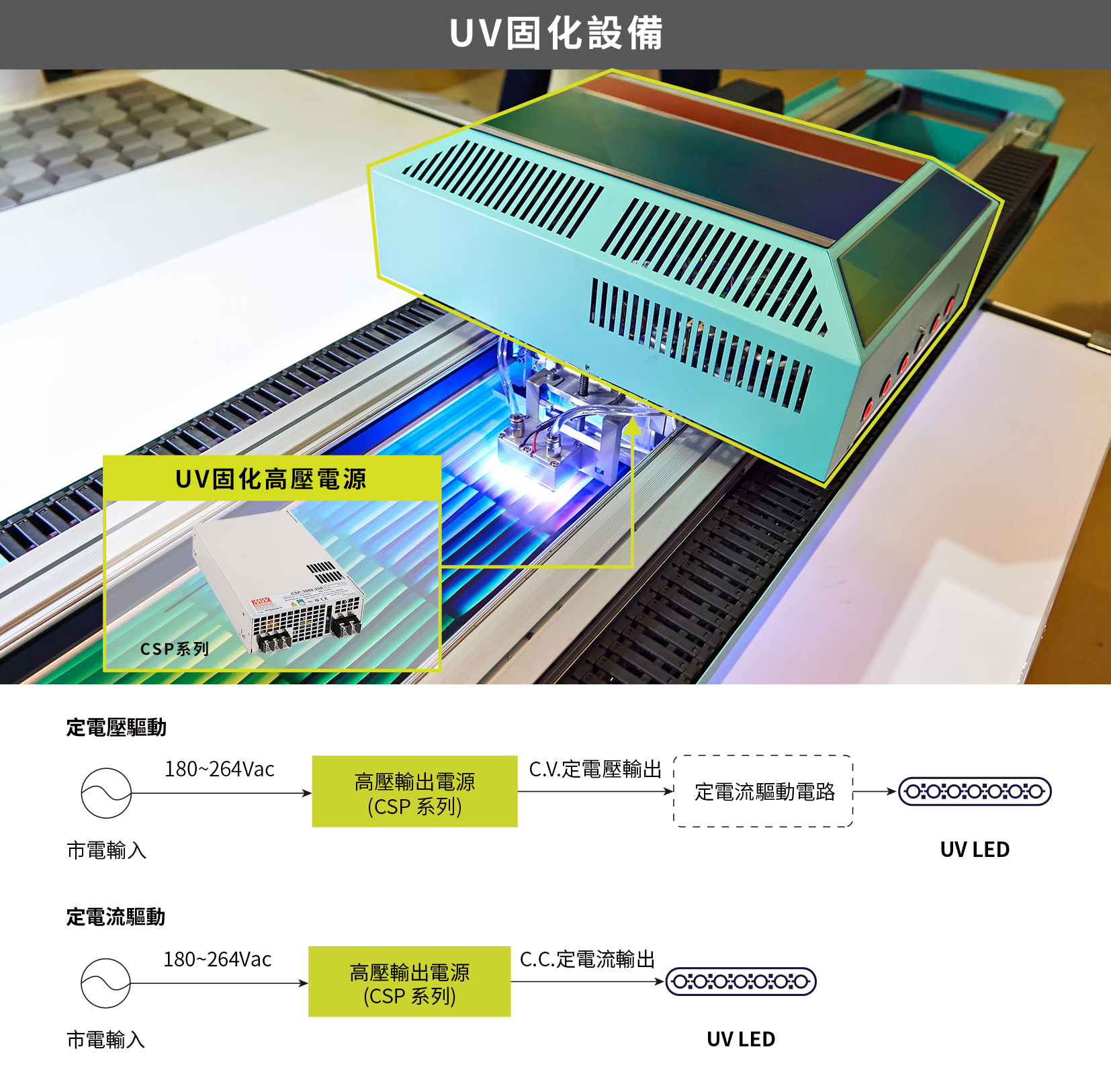

MEAN WELL 3000W High Output Voltage PSU, CSP-3000 series, Suitable for UV curving device, High efficiency up to 93%, Forced air cooling by built-in DC fans, Built-in remote ON-OFF control /
auxiliary power / power OK signal, Conformal coating

MEAN WELL Enclosed Type Power Supply, HEP Series and UHP series, Suitable for Indoor and outdoor signage display, Fanless and fully-potted design for harsh environment, Withstand 10G vibration test, Built-in 2/3 stage charging curves and programmable curve, Output voltage and constant current level programmable, Built-in PMbus and CANBus protocal (optional), Built-in DC OK active signal and 12V auxiliary power output, Fanless design,convectin cooling, Slim and low profile design
